Wolf Tooth Components CAMO Direct Mount Spider for SRAM 8-Bolt Bicycle Chainrings

Note: This is a CAMO Spider ONLY.  A CAMO Chainring is required to complete this system.

This is a spider for use with the SRAM 8-Bolt cranksets that have a removable spider including SRAM T-Type Transmission AXS cranksets, Sram Transmission 70 and 90 cranks, 2025 Cane Creek eeWings Titanium Cranks (8-bolt), and any other cranks that use the 8-bolt direct mount interface.

The CAMO chainring system was created by Wolf Tooth engineers for Chainline And Material Optimization on direct mount style chainrings. The key advantages include:

1. Perfect chainline for wear and shifting precision

2. Optimal material usage for weight, stiffness, and wear

3. Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider

4. Swapping chainrings is very fast with only five small bolts and no nuts

5. Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.

6. Wolf Tooth’s patented Drop-Stop®  wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

Compatibility

• This spider is designed to work with the SRAM cranksets with an 8-Bolt direct mount interface.

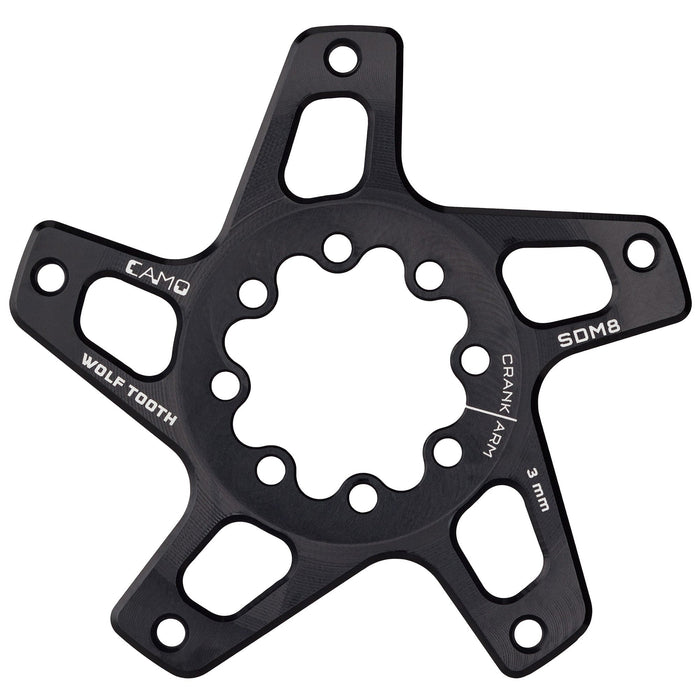

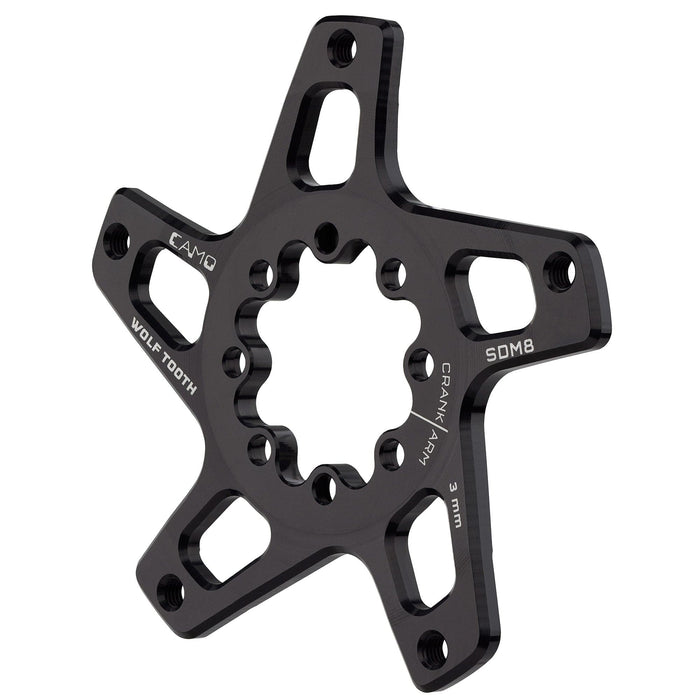

• • M5 (3mm offset - Boost)
    • Dished towards the frame) is for 52mm chainline for Boost bikes.
    • Is for a 55mm chainline on a DUB Wide spindle crankset.
    • Praxis Works mountain bike cranks use this offset for DM-A chainrings.

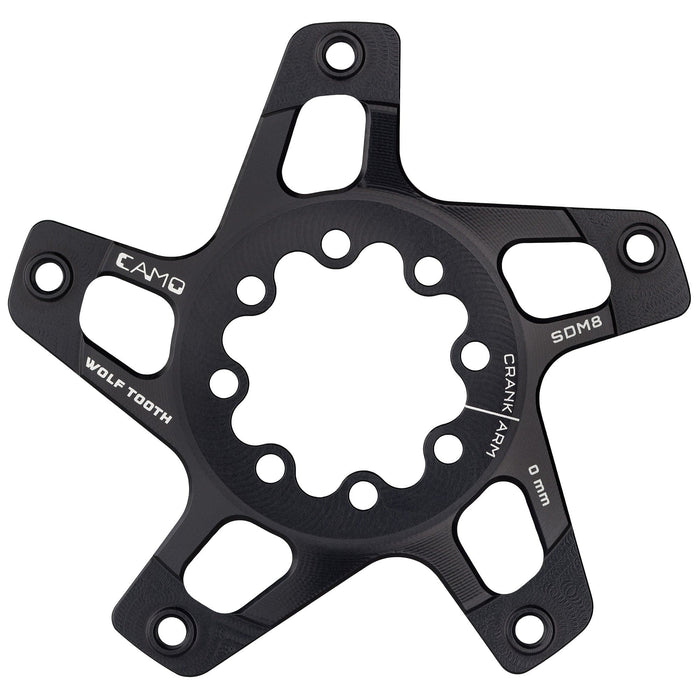

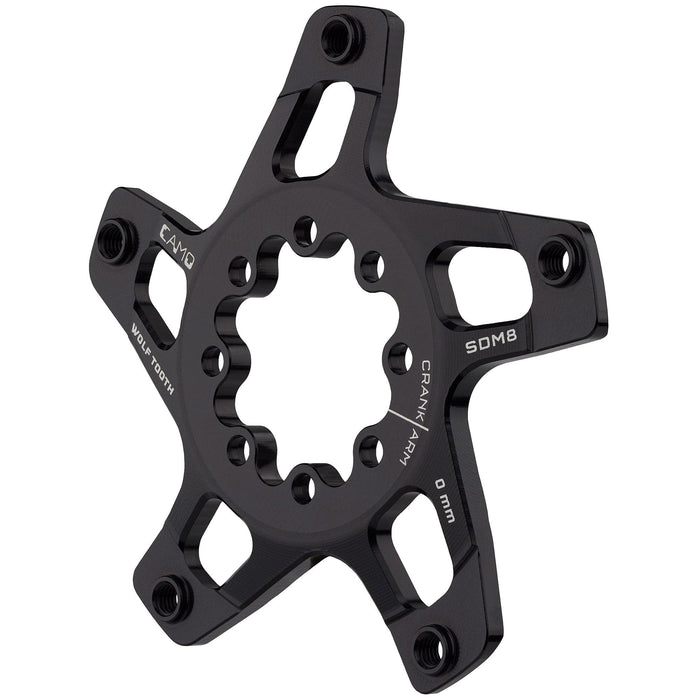

  • M2 (0mm offset)
    • Is for a 55mm chainline on a DUB spindle crankset.
    • Is for a 49mm chainline on a BB30 short spindle crankset.
    • Praxis Works mountain bike cranks use this offset for DM-B chainrings.
    • See the image below for how to measure your spindle length if you have BB30.

• Chainline - varies by which spider you choose.  See compatibility above.
• If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
• All Camo Spiders are not compatible with Bash Guide ISCG05

Installation notes:

• You will be able to access all bolts without removing the spider
• Line up the little dot on the ring with the dot on the spider.  Don't worry, you cannot install the ring in the wrong rotational orientation.
• Be sure the bosses on the spider "plug in" to the chainring.
• Torque bolts only to 4-5 Nm and use blue Loctite threadlocker



Tech Specs

Weight: M5 • 28g  |  M2 • 28g
Material: 7075-T6 aluminum
Included: ED coated steel bolts included
Made in USA
